SPECIFICATIONS

Ball Material: ss304

Body material: SS304, UPVC

Certificate: ISO,CE,ROHS

Connection Type: Thread

Control Mode: Mobile App Remote Control

Open/Close time: 30S

Operating Mode: Timed mode & Angle adjustment mode

Port Size: DN15-DN32

Product Name: UPVC DC5V electric smart wifi remote control ball valve for water

Protection class: IP65

Working Pressure: 0-1.6 Mpa(16bar)

application: General

brand name: CTF-001 smart wifi ball valve

customized support: OEM

media: Water

model number: CTF-001 smart wifi ball valve

output torque: 10NM

place of origin: tianjin, China

power: smart wifi ball valve

structure: Ball

temperature of media: Max 90 degree celsius

voltage: DC5V

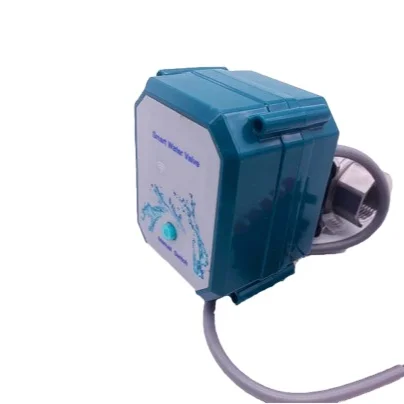

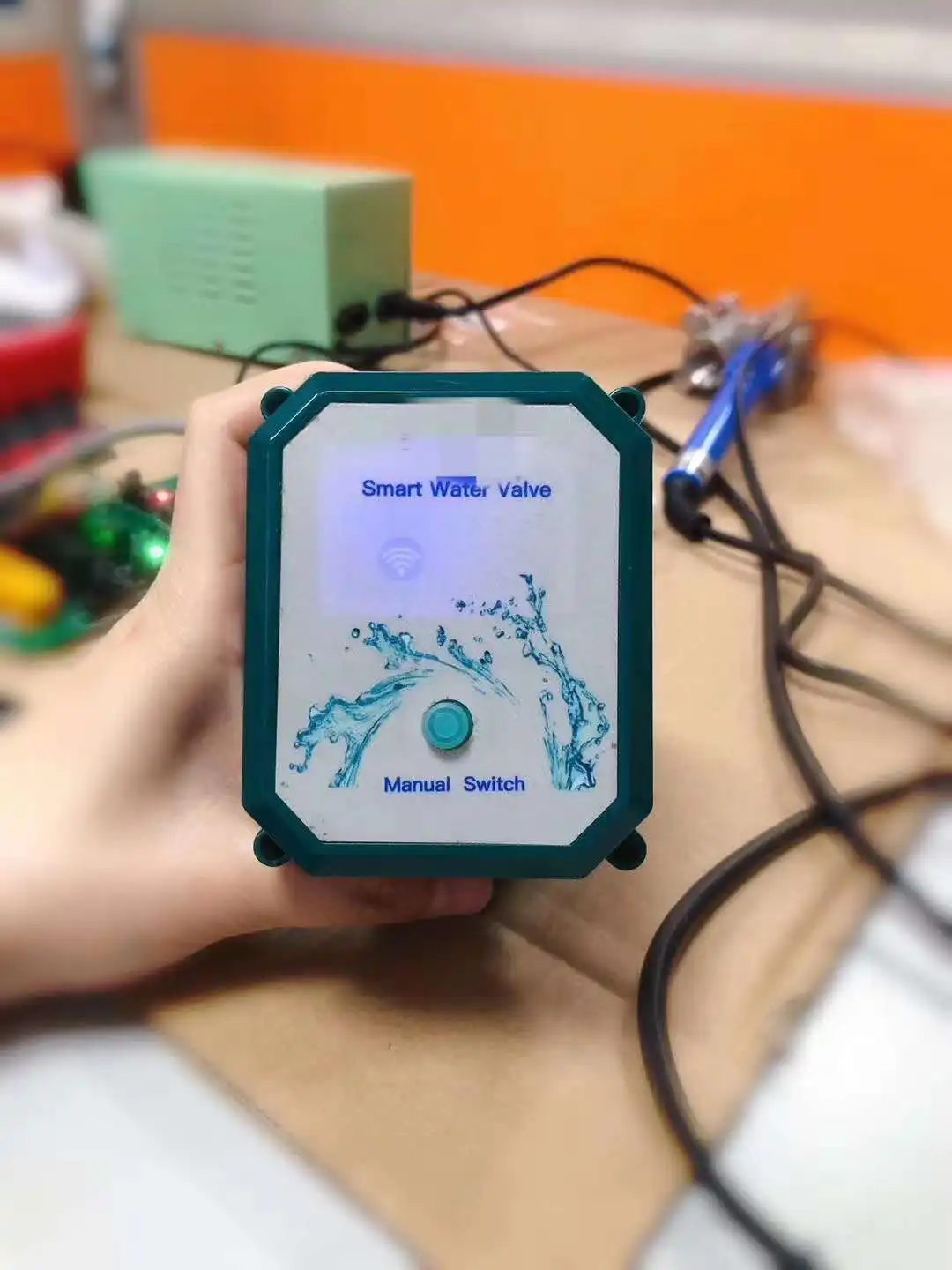

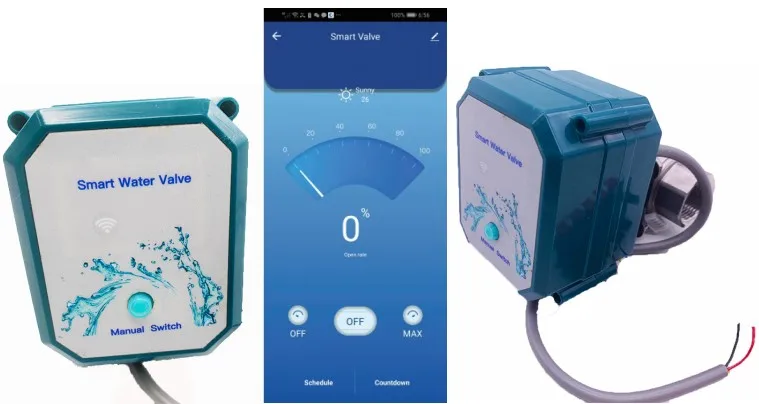

CTF-001 10NM DN8 DN32 ss304 UPVC DC5V electric tuya smart wifi remote control ball valve for water

1) WIFI wireless connection;
2) 2.4G frequency transmission, in line with IEEE 802.11 b / g / n standard;

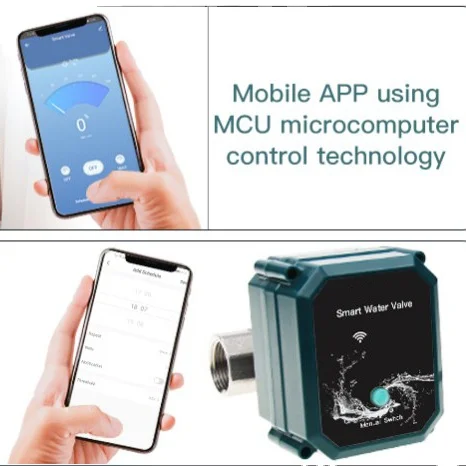

3) Mobile APP remote control;
4) Real-time status feedback;
5) Control accuracy: 0.5% ~ 1%;
6) Easy installation
7) The electric actuator has two working states: timing mode and angle adjustment mode;
