SPECIFICATIONS

APP: Free iOS and Android mobile App eWeLink

Brand Name: SONOFF

Camera Equipped: No

Certification: CE,RoHS

Communication method: Wi-Fi

Compatibility: All Compatible

Origin: Mainland China

State of Assembly: Almost Ready

Wifi Standard: 2.4G

app control: App Control

application: Home,Commercial

camera: No Camera

feature: App Control,Wi-Fi

operation system: Android

place of origin: Guangdong, China

power source: Electric

product type: Smart Switch

use: Universal

Overview

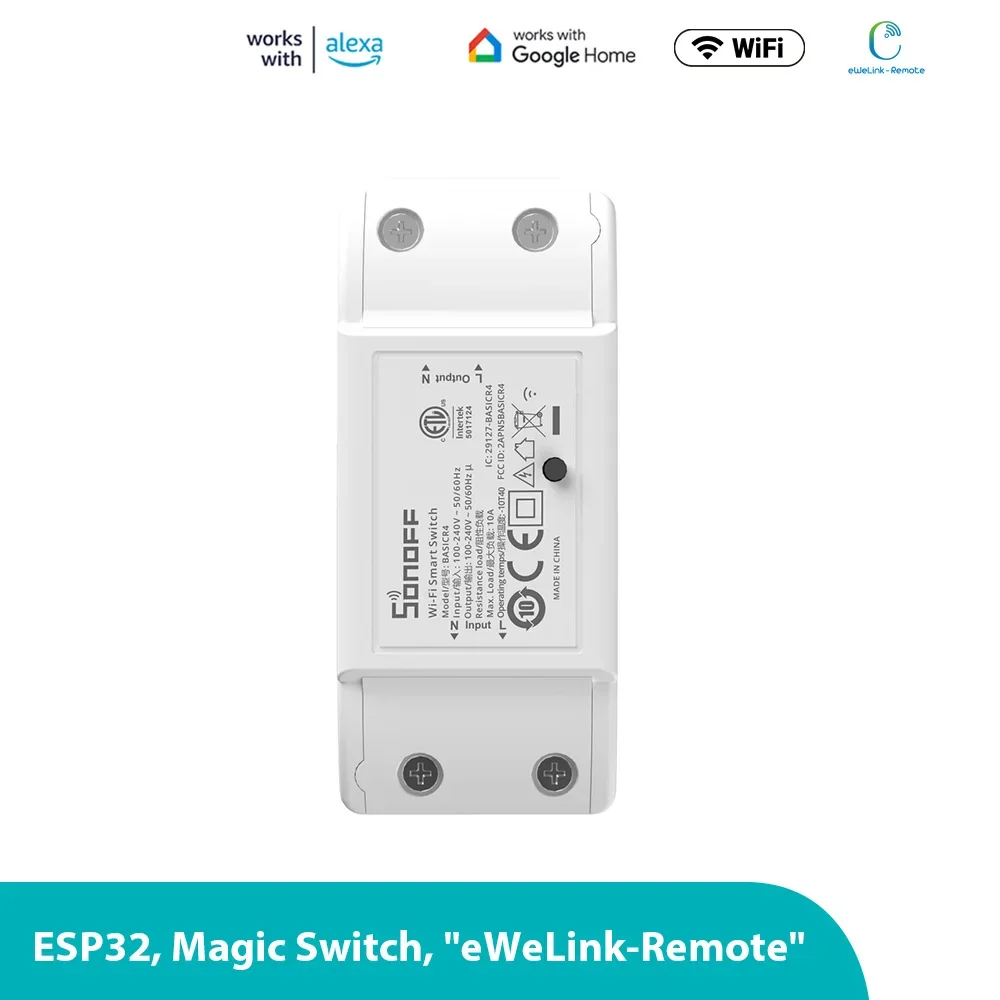

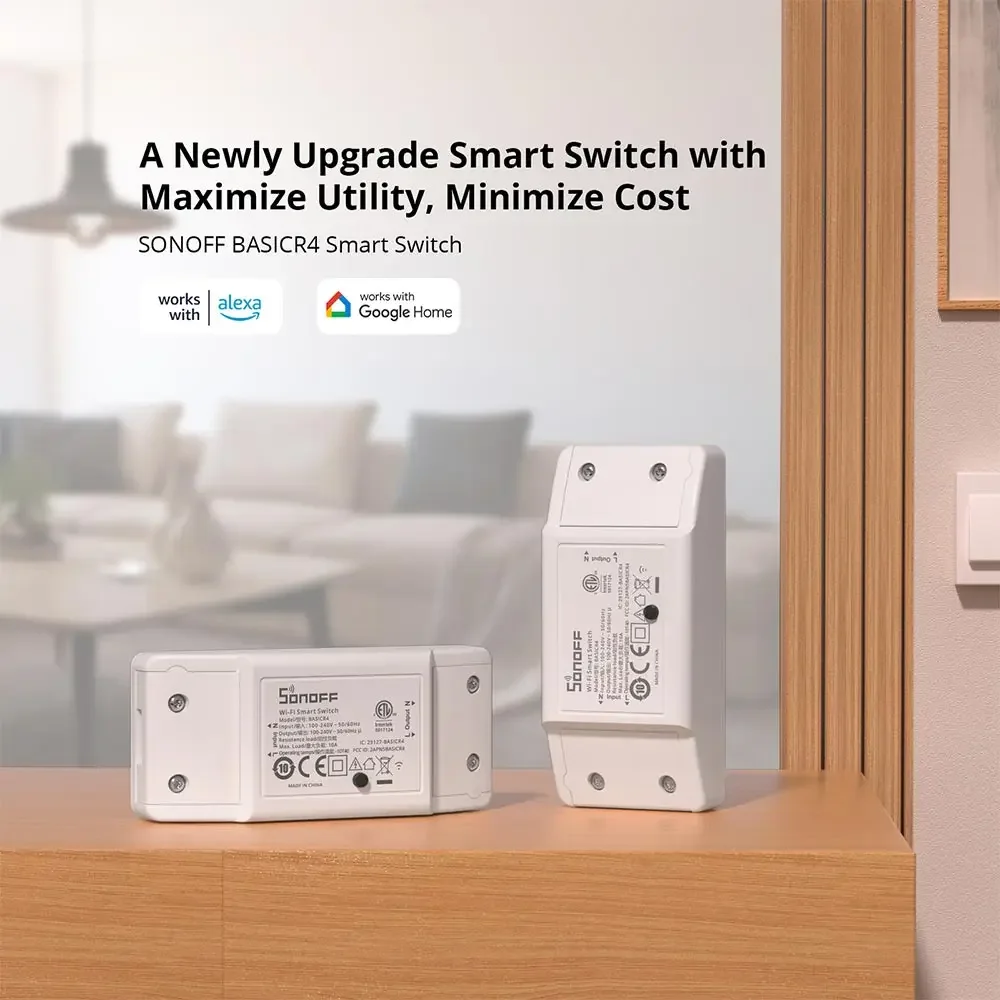

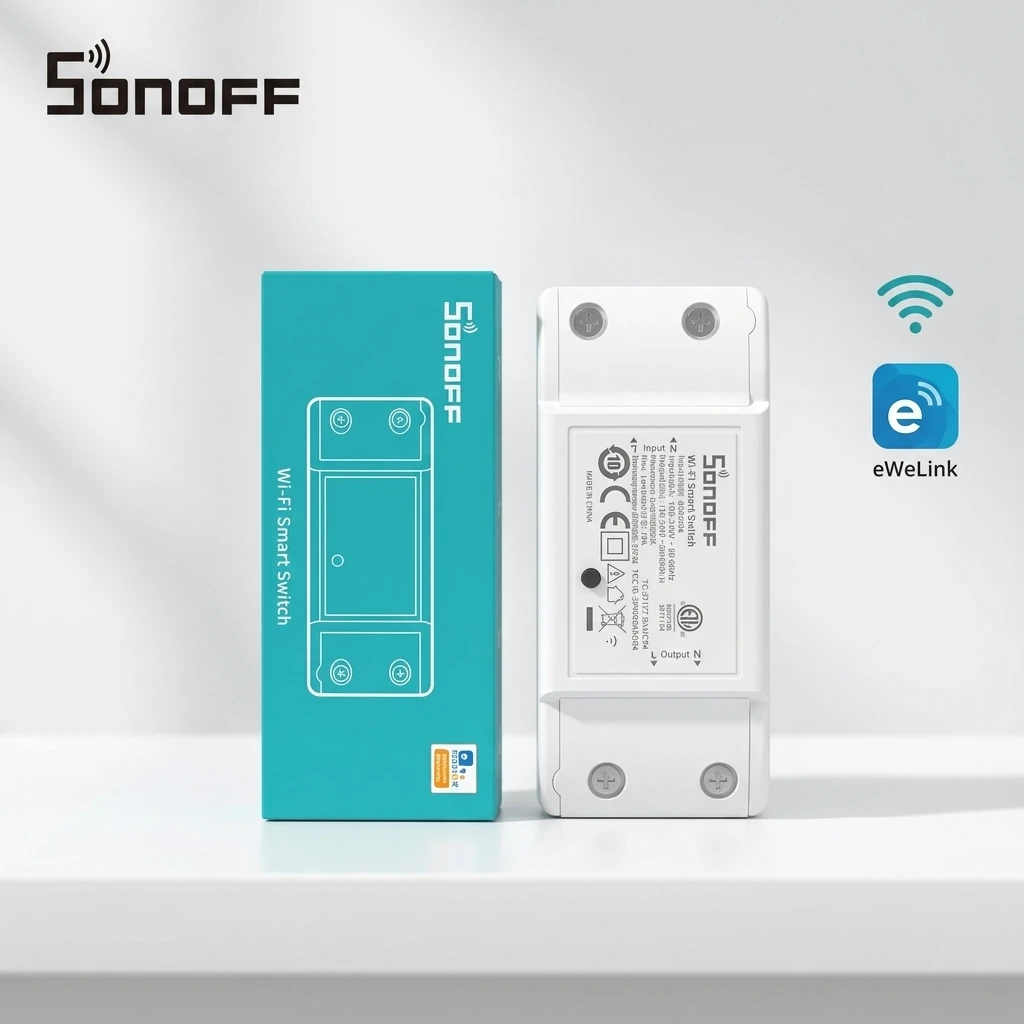

BASICR4 is a newly upgraded WiFi smart switch equipped with an ESP32 chip. BASICR4 not only enhances the basic features but also elevates performance, all while maintaining an affordable price.

Compared with BASICR2, BASICR4 has three new functions, Magic Switch Mode, Auxiliary Overheating Protection, and “eWeLink-Remote” Control. BASICR4 has “magic switch” mode, which means you can still control the light switch through the app even turning off a traditional wall switch (Note: *Only compatible with mainstream brands of double pole rocker switches. The rear-end light needs to be compatible with mainstream brands of LED,energy-saving lamps, and incandescent lamps ranging from 3W to 100W).

BASICR4 is a smart switch with the gateway function of “eWeLink-Remote“. Using S-Mate2 or R5 to pair with BASICR4, then set the scene, you can reach the two-way control and local control.

With the product’s built-in temperature sensor, the real-time maximum temperature of the entire product can be detected and speculated, which prevents the product from deformation, melting, fire, or live devices from exposure in case of over-temperature. The BASICR4 not only has CE, FCC, etc basic certifications but also passed the more authoritative ETL certification.

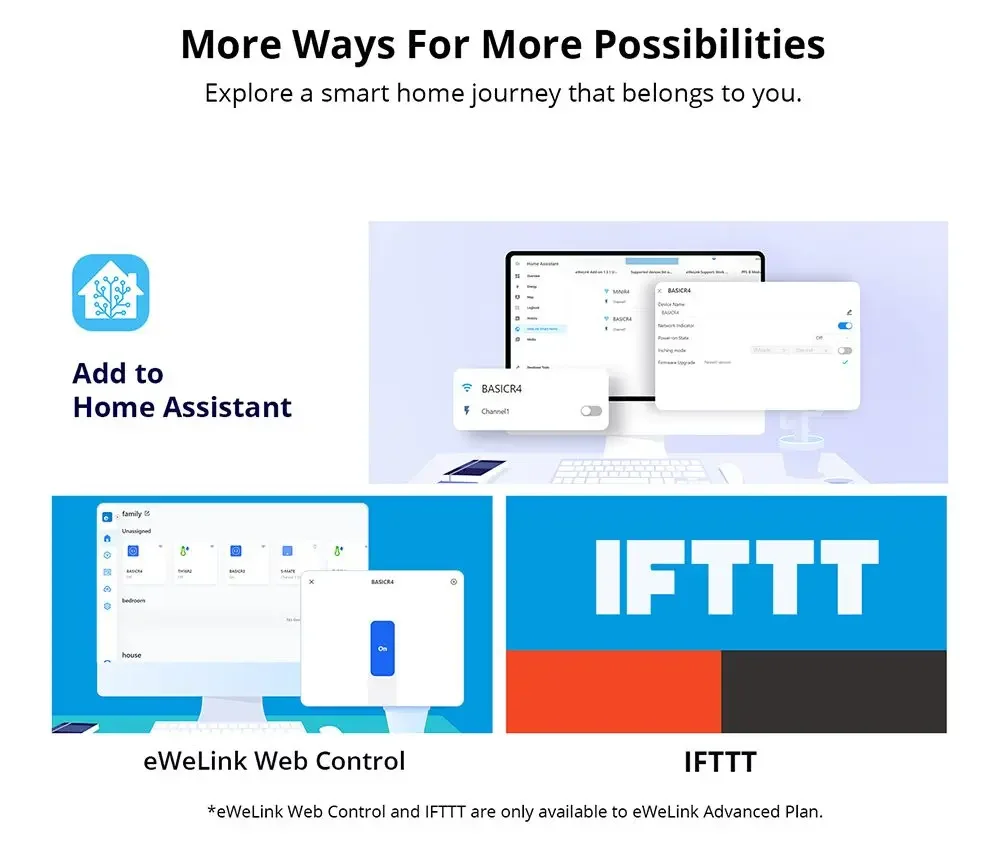

BASICR4 has all the most basic functions, APP remote control, voice control, timer, power-on state, and other functions. You can control your home appliances anytime, anywhere, and also create a variety of smart scenes to facilitate your life.

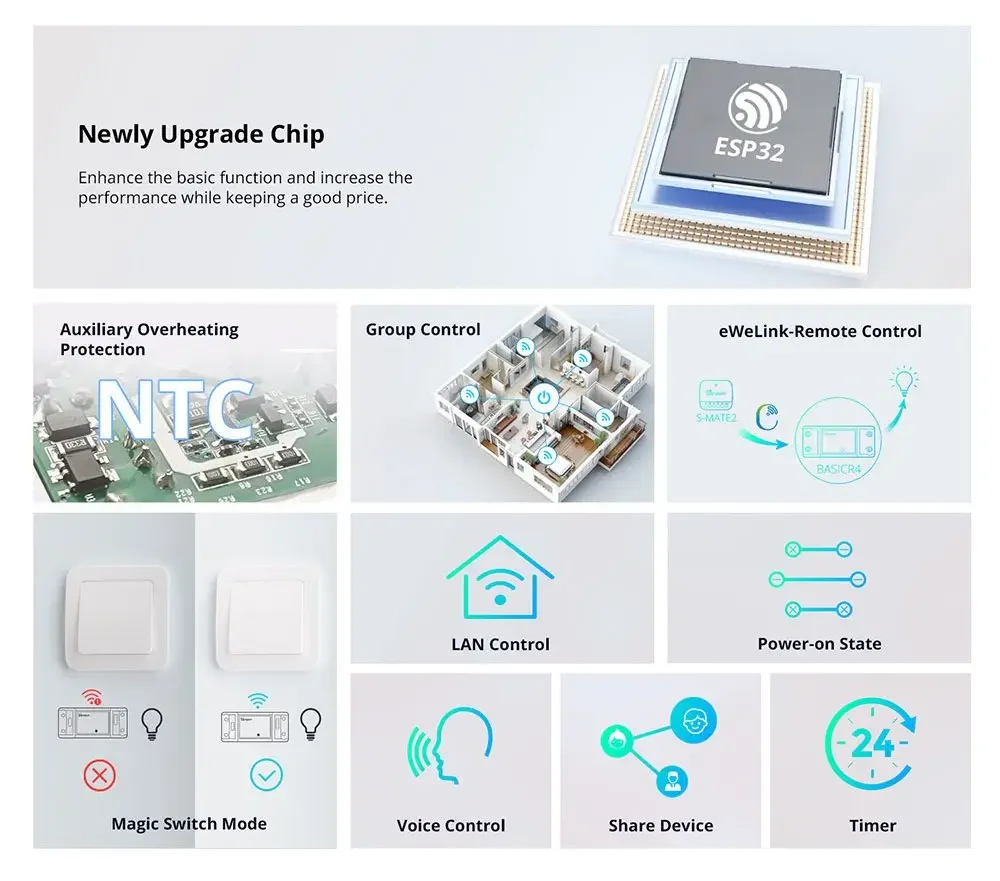

SONOFF Features:
[ESP32 Chip]Newly upgrade the chip, enhance the basic function, and increase the performance while keeping a reasonable price.

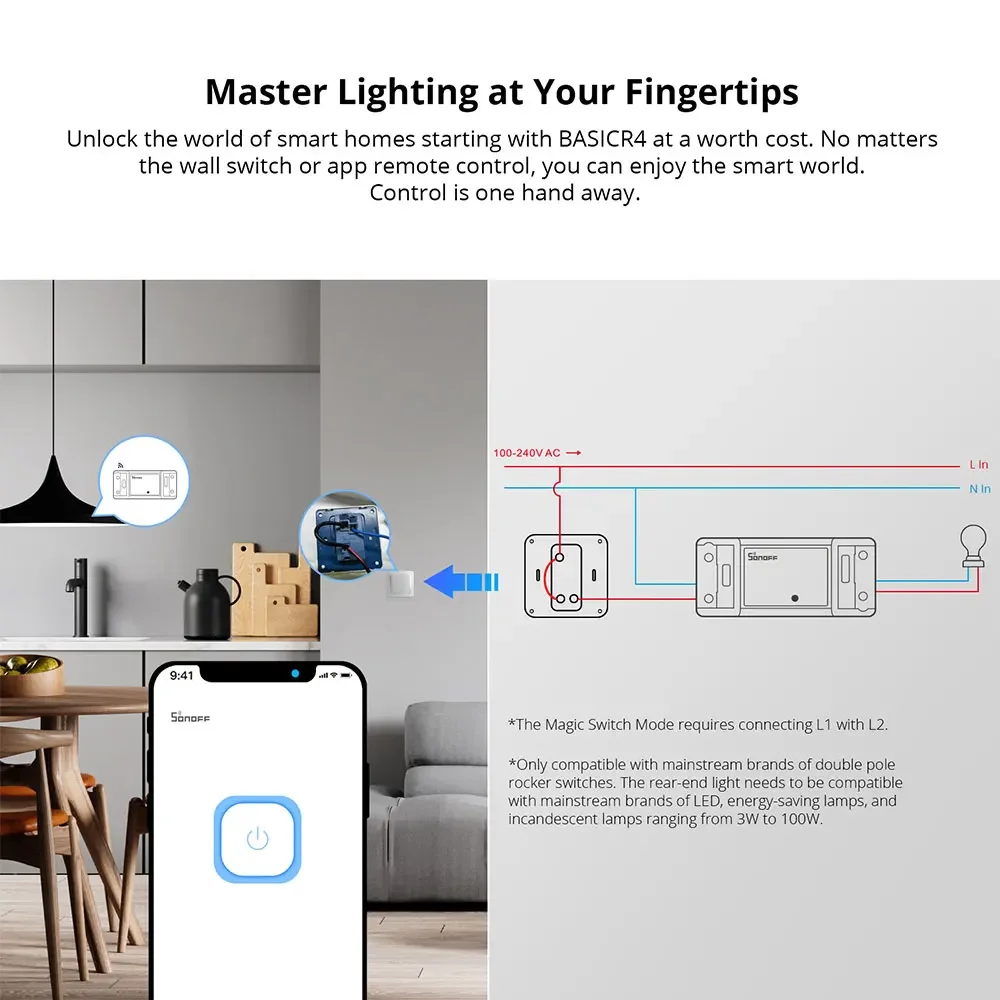

[Magic Switch Mode]You can still control the light switch through the app even turning off a traditional wall switch. No matter the wall switch or app remote control, you can enjoy the smart world.

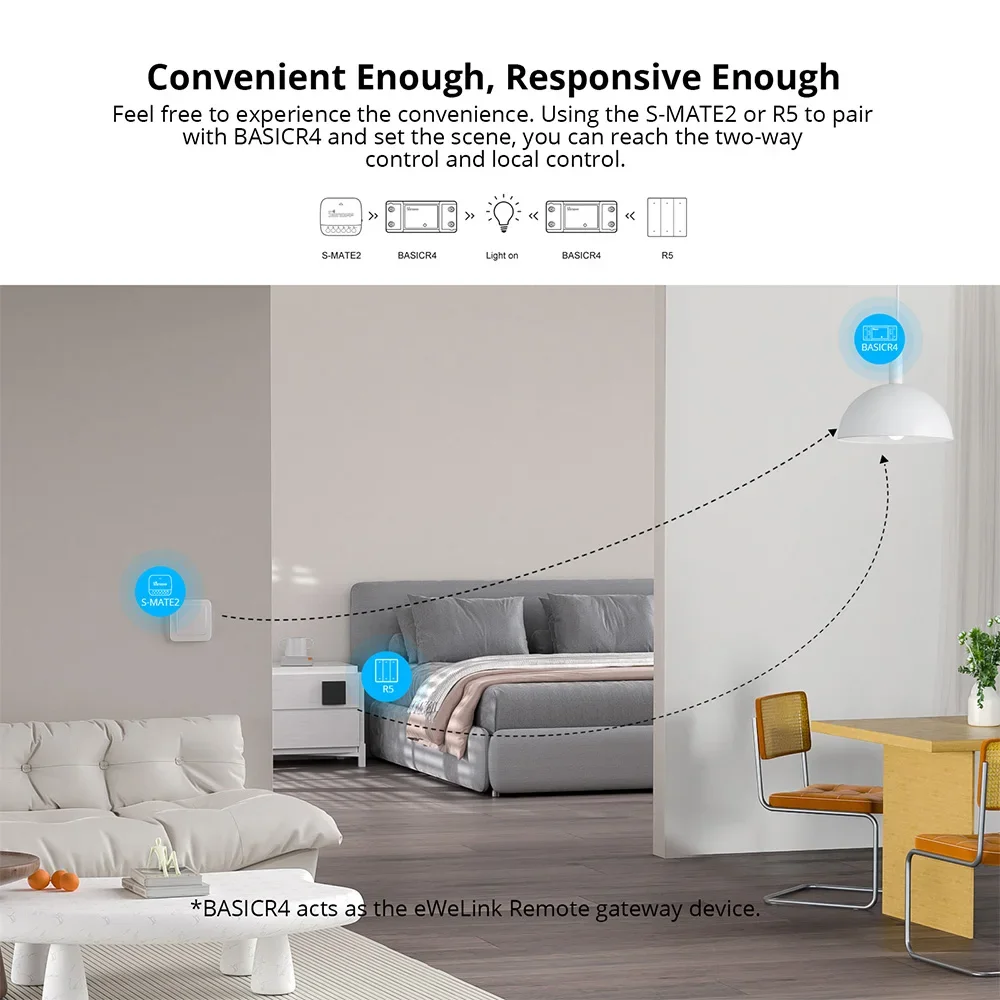

[“eWeLink-Remote” Control]BASICR4 is a smart switch with the gateway function of “eWeLink-Remote”. You can add “eWeLink-Remote” sub-devices, use S-Mate2 or R5 to pair with BASICR4, and then set the scene, you can reach the two-way control and local control.

[Group Control]You can set groups to control multiple devices at the same time for convenience.

[Safe and Reliable]With the product’s built-in temperature sensor, the real-time maximum temperature of the entire product can be detected and speculated, which prevents the product from deformation, melting, fire, or live devices from exposure in case of over-temperature. BASICR4 has obtained CE, FCC, ETL etc certifications.

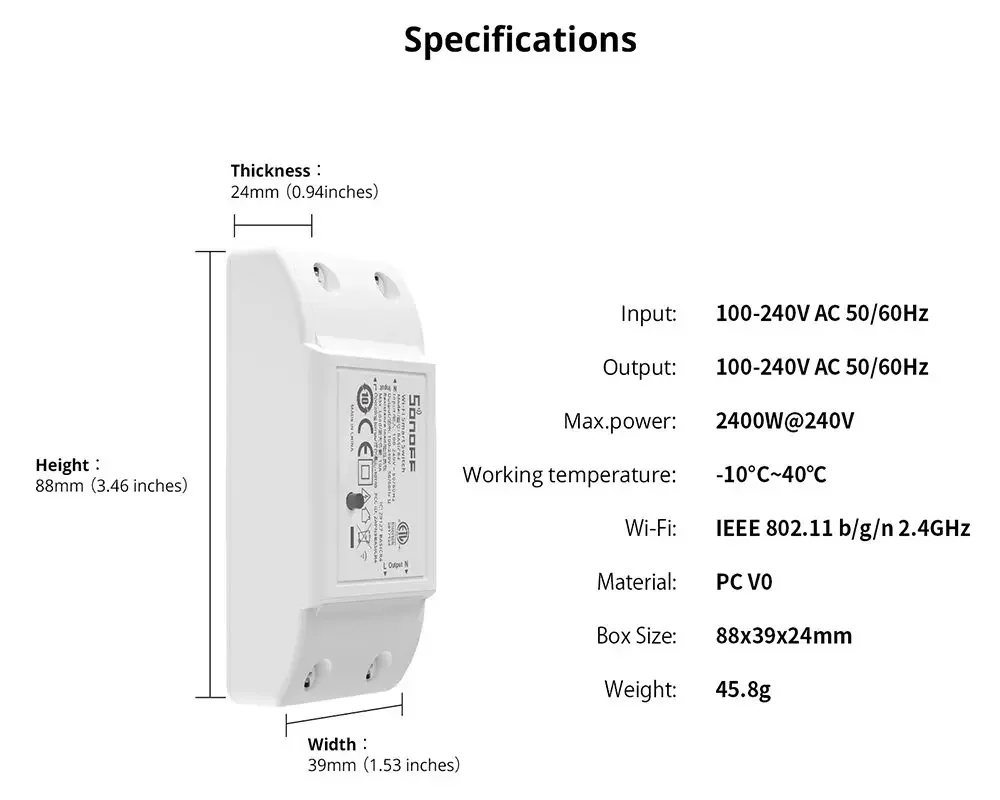

Specification:
Voltage range: 90-240v AC(50/60Hz)
Max current: 10A
Max Wattage: 2200 watts
Dimensions: (L)88x(W)39x(H)24mm
Color: White
Humidity: 5-95 percent
Wireless Frequency: 2.4Ghz
Working Temp: -20 -75 degree

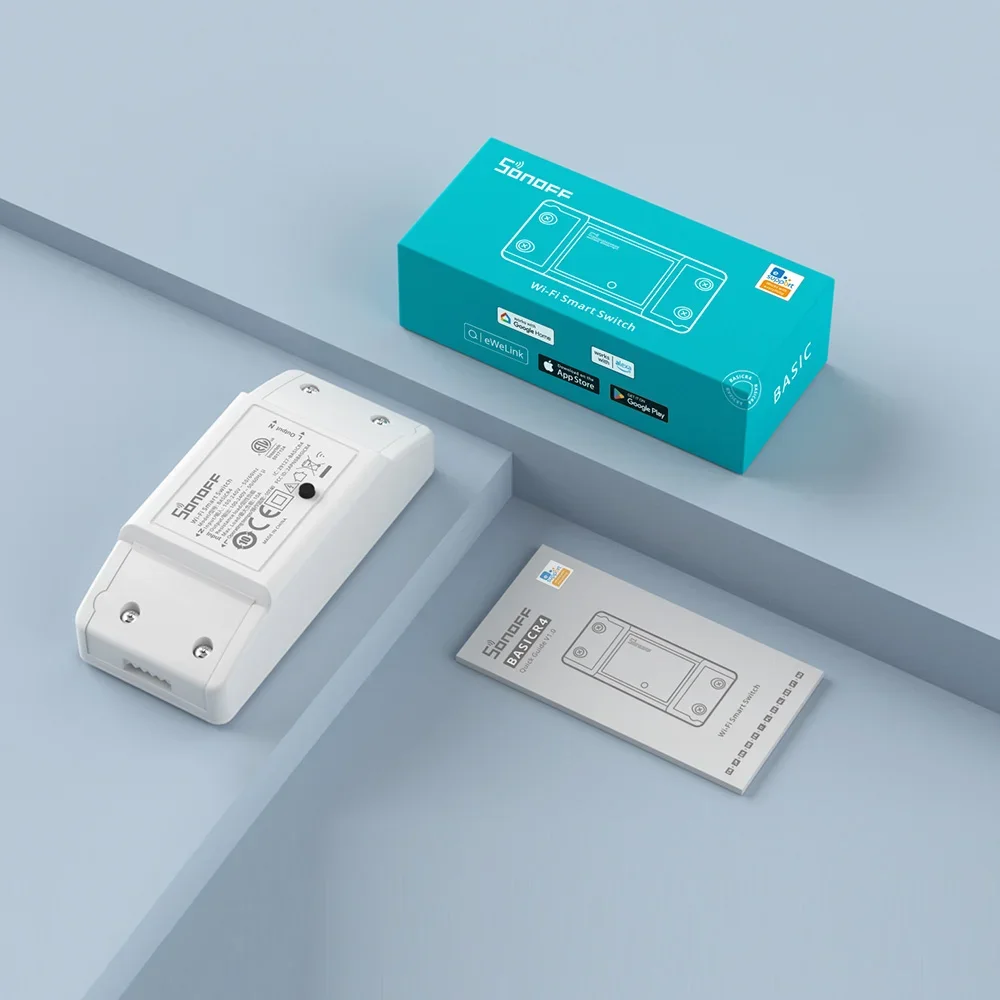

Package Includes:

Sonoff Wi-Fi Smart Switch

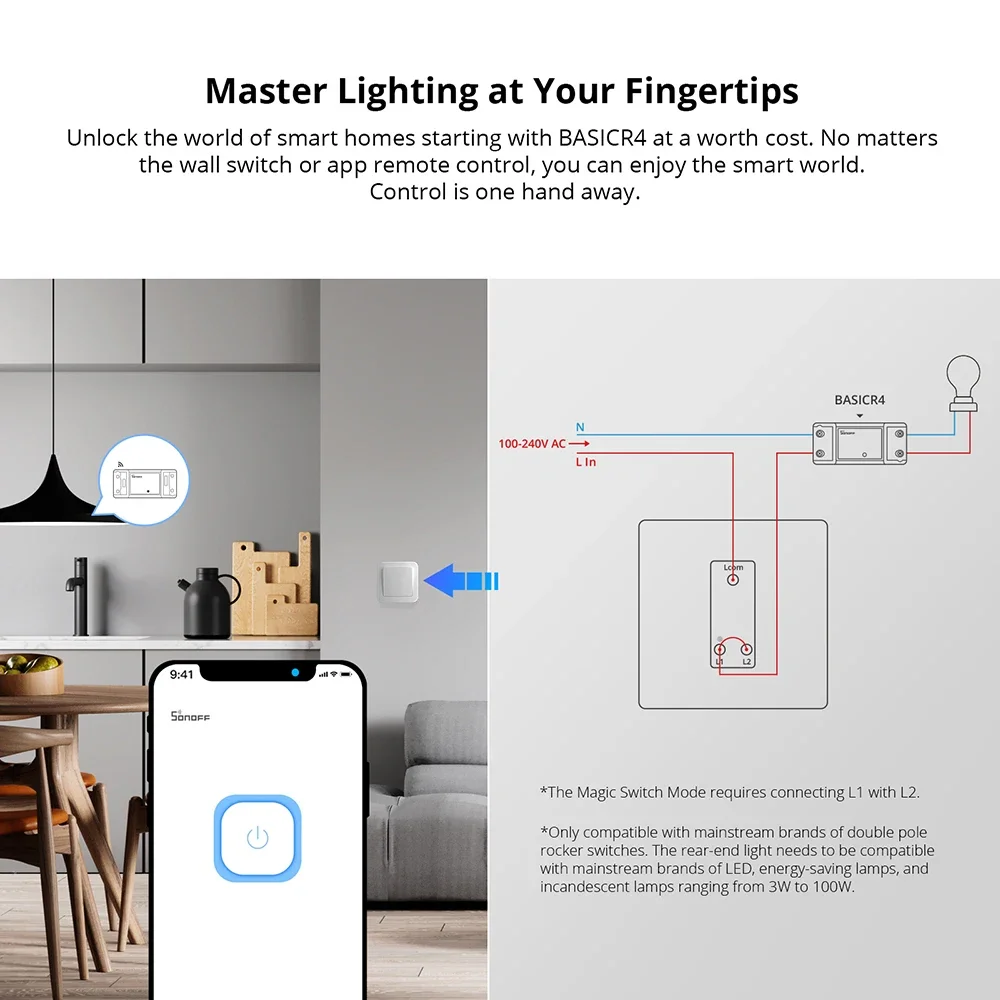

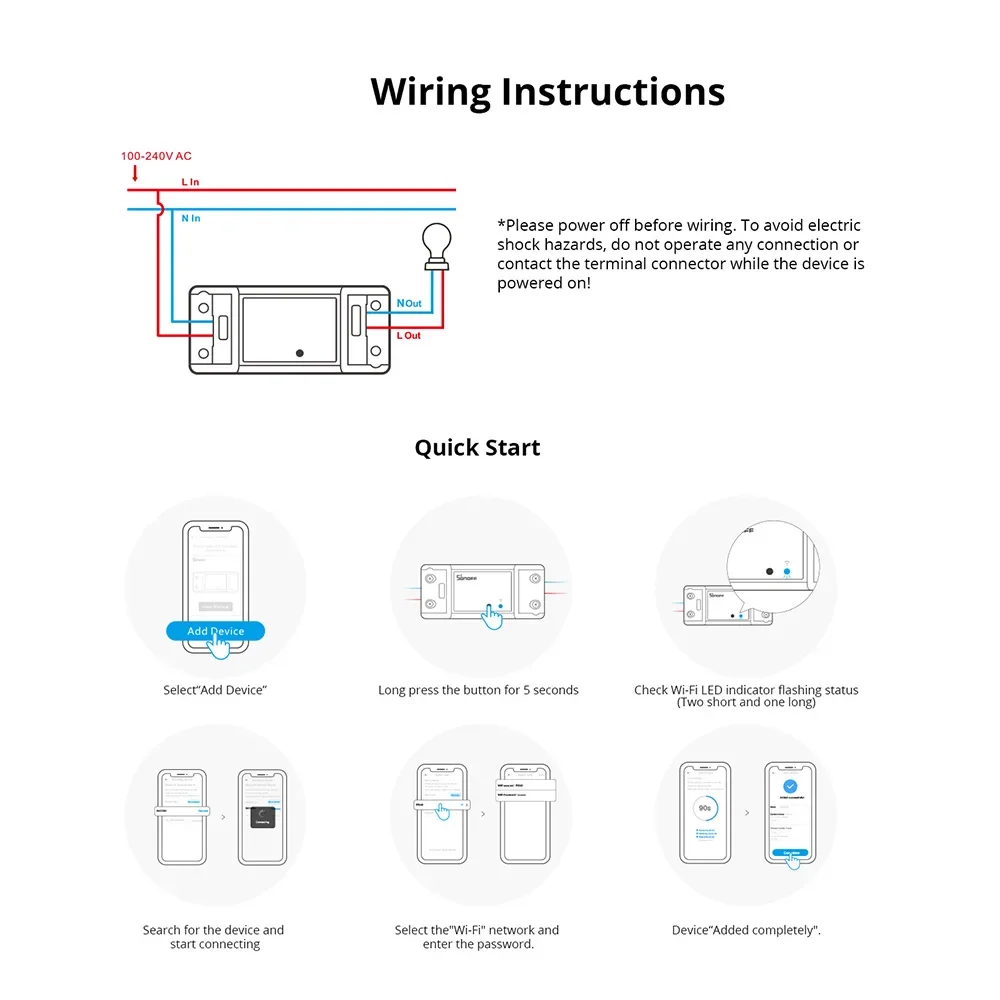

In-out Connect way must be strictly according to below draw, live wire and zero wire can be connect randomly

Pls Note: The SONOFF BasicR4 switch have the function of eWelink Remote Control ,if you want this Function switch , pls buy SONOFF R5 or -SMate2 .
